Brochure Orbit
Ideal when zero leakage and frequent operation are required.
Low-emission valves
Trust our API- and ISO-certified Low-E valves to mitigate fugitive emissions in your operations

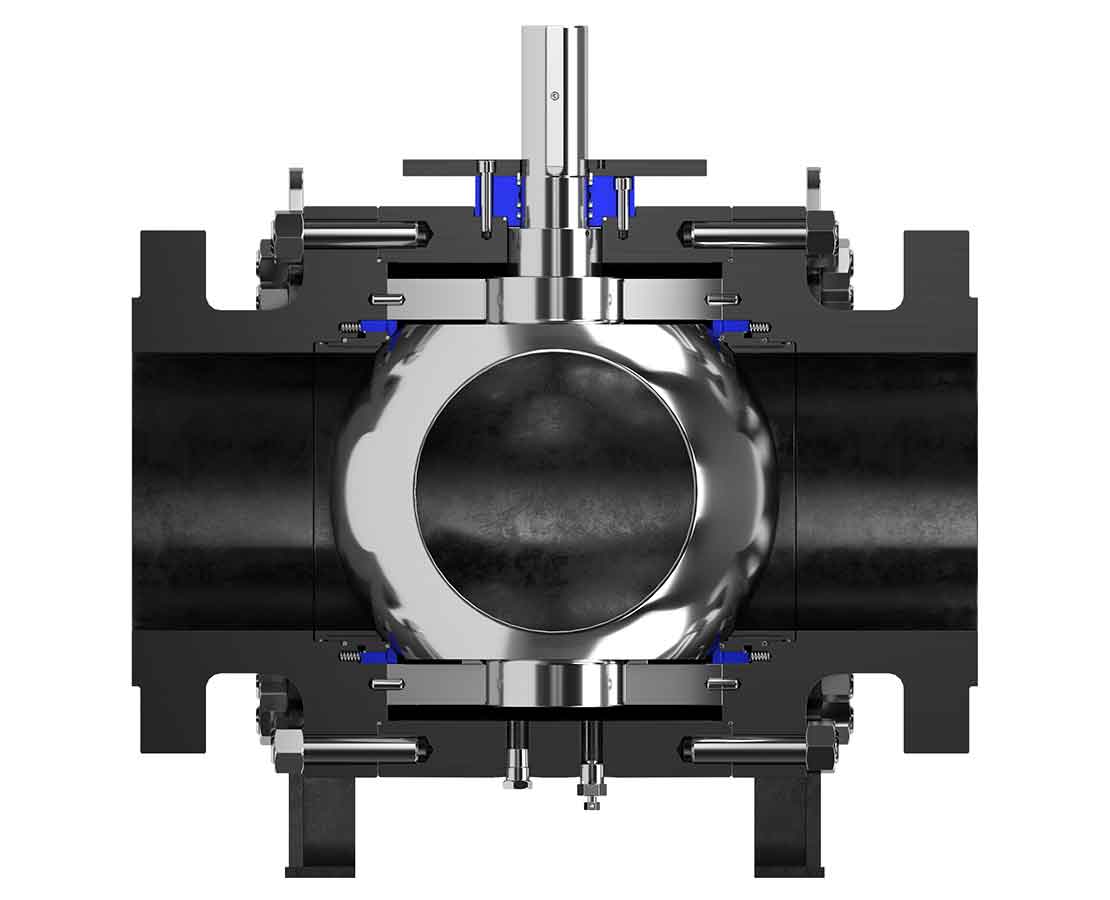

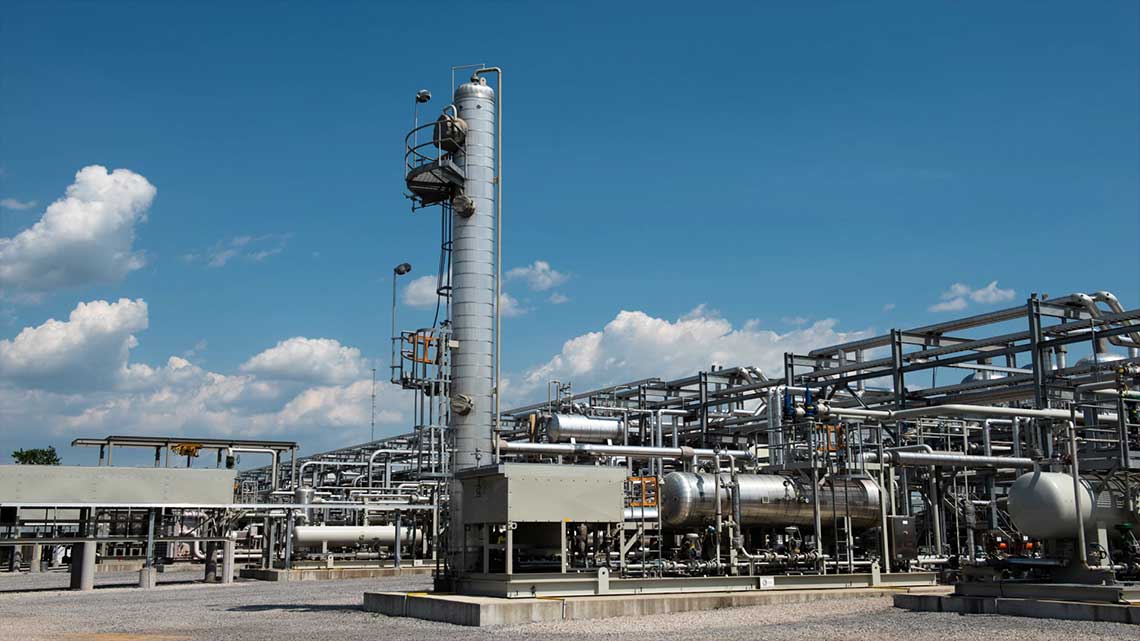

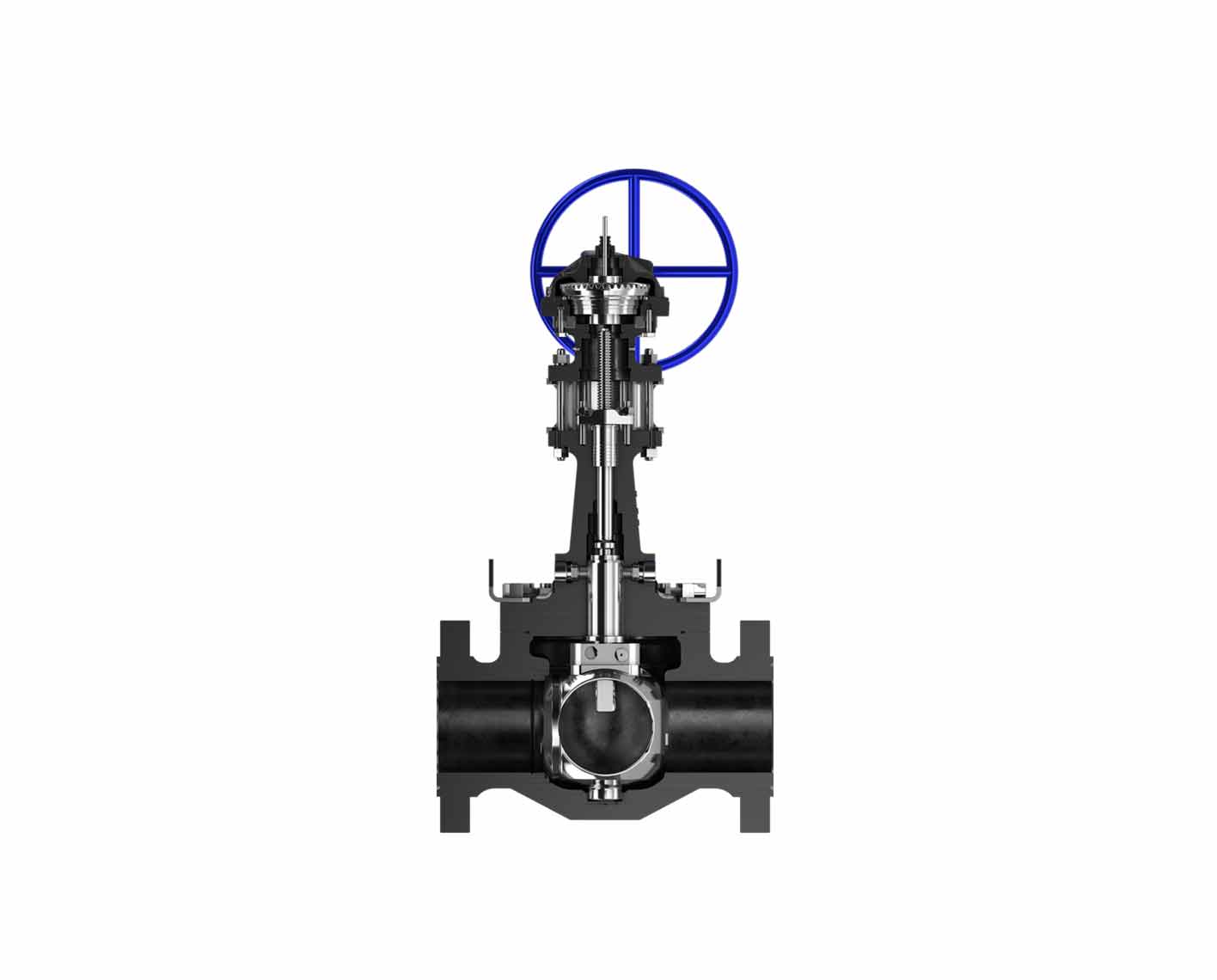

Our portfolio of fugitive emissions– (FE-) compliant valves, also called Low-E valves, includes traditional, well-known ball valve types—trunnion-mounted, floating, and rising stem—together with gate valves, plug valves, and new technology, such as the integrated-seat ball valve. Certified to industry FE design standards API 624 and 641 and ISO 15848-1, these valves have a wide range of applications, including gas processing plants, LNG plants, refineries, petrochemical plants, oil and gas production, and pipelines.
Emissions reduction
Low-E valve packing can provide up to 96% reduction in emissions relative to standard packing.
Minimize greenhouse gas emissions in upstream, midstream, and downstream valve applications
Low-E valves are an integral part of emissions reduction strategies across any industry. This is because valves contribute significantly to the number of joint and pressure boundary penetrations in a pressure-containing system and are therefore, potential sources of emissions.
Qualifying valves to relevant industry standards can help assure that emissions from pressure boundary penetrations are minimized to acceptable levels. Our Low-E valves meet global emissions standards across their full life cycle, using technology you’ve trusted for 50 years—now enhanced to address the challenges of today and tomorrow. Current standards qualify against methane emissions. However, SLB provides FE-certified valves that can also be used for services involving hydrogen (provided the valves undergo helium testing), CO2, and other greenhouse gases, in addition to methane.
Fugitive emissions result from the unintentional release of environmentally undesirable gas or vapor.
The right valve, maintained optimally
Selecting the right valve technologies and maintaining them properly is the best way to minimize or prevent fugitive emissions. Targeting these emissions presents a low-risk, high-yield opportunity to reduce your environmental impact. Our valve technology and OEM maintenance services and support deliver long-term value and help you maintain your social license to operate.
Whether you have an existing installation or are working on a new project, our experts can walk you through available valve types and testing, certification, monitoring, and maintenance options so that you can install what you need and keep it operational for years to come.
Services to maintain and monitor valve performance
Maintenance of certification
Any deviation from the valve parameters, such as tolerances, finishes, seal material, and grade, that results from valve servicing and repair renders the original certification invalid and provides no guarantees regarding the emissions performance. Our extensive OEM service capabilities for repair or rework ensure adherence to the original parameters.
Enhanced FE performance
Recognizing that the emissions performance of valves in operation should be verified through a leak detection and repair (LDAR) program, we offer upgrade options to further enhance Low-E performance, as required, for your most demanding applications.
Tailored solutions for methane challenges
The complete product and service offering of SLB End-to-end Emissions Solutions (SEES) is a one-stop shop for the tools and services that you need to measure, monitor, and report methane emissions.
Decarbonize your operations
Low-emission valves are part of our Transition Technologies™ portfolio and address the challenge of fugitive methane emissions. These technologies reduce environmental impact, helping you reach your sustainability goals by mitigating or preventing unintended emissions.
Learn more596
million metric tons of methane emitted into the atmosphere annually*86×
stronger global warming potential of methane vs. CO2 across 20 years*57%
CO2e emissions from oil and gas operations caused by vented and fugitive methane* Source: R B Jackson et al. 2020. Increasing anthropogenic methane emissions arise equally from agricultural and fossil fuel sources. Environ. Res. Lett.15 071002. https://iopscience.iop.org/article/10.1088/1748-9326/ab9ed2.
Standards and Regulations
Industry standards and government regulations about fugitive emissions and low-emission valves
Code of Federal Regulations (CFR), Title 40, Part 61 (40 CFR Part 61): National Emission Standards for Hazardous Air Pollutants.
40 CFR Part 63: National Emission Standards for Hazardous Air Pollutants for Source Categories.
API Standard 622: Fugitive emissions testing of process valve packing in a test fixture subject to pressure, temperature, and mechanical cycles
API Standard 624: Type Testing of Rising Stem Valves Equipped with Graphite Packing for Fugitive Emissions
API Standard 641: Type Testing of Quarter-Turn Valves for Fugitive Emissions. Ball, butterfly, and plug valves with API Standard 622-compliant packing if graphite is used or various elastomer options at a range of temperatures
ISO 15848-1: Industrial Valves—Measurement, Test and Qualification Procedures for Fugitive Emissions
Valve Testing Considerations
Repair and Redressing Considerations
Special requirements for repairing Low-E valves so that they maintain their capability to prevent unwanted emissions
Qualification standards for FE-compliant valves are complex. Aside from valve size, pressure rating, and style, other aspects that affect continued compliance include seal material, design, shape, and construction; sealing stress; surface finish; and tolerance classes.
A product that does not maintain its properties would no longer be covered by its original FE certification. It is, therefore, vital that repair and redressing take account of these parameters to ensure that a refurbished or repaired product continues to be covered by its original FE compliance certification.
Count on us as your trusted OEM partner for repairs on the SLB family of FE-certified valves.
Avoid fugitive emissions with the most comprehensive Low-E valve portfolio
We have invested many years in the design, engineering, manufacturing, and testing of a comprehensive valve portfolio that meets or exceeds FE standards. We continue to take a leadership role in researching and developing industry qualification standards for these emissions.
As operators increasingly specify low-emission valves, we stand ready to manufacture and deliver valves that meet the challenging design standards for oil and gas production, processing, transmission, and storage applications. And we encourage proper OEM maintenance and repair to ensure that the valves continue performing reliably over the long term.
